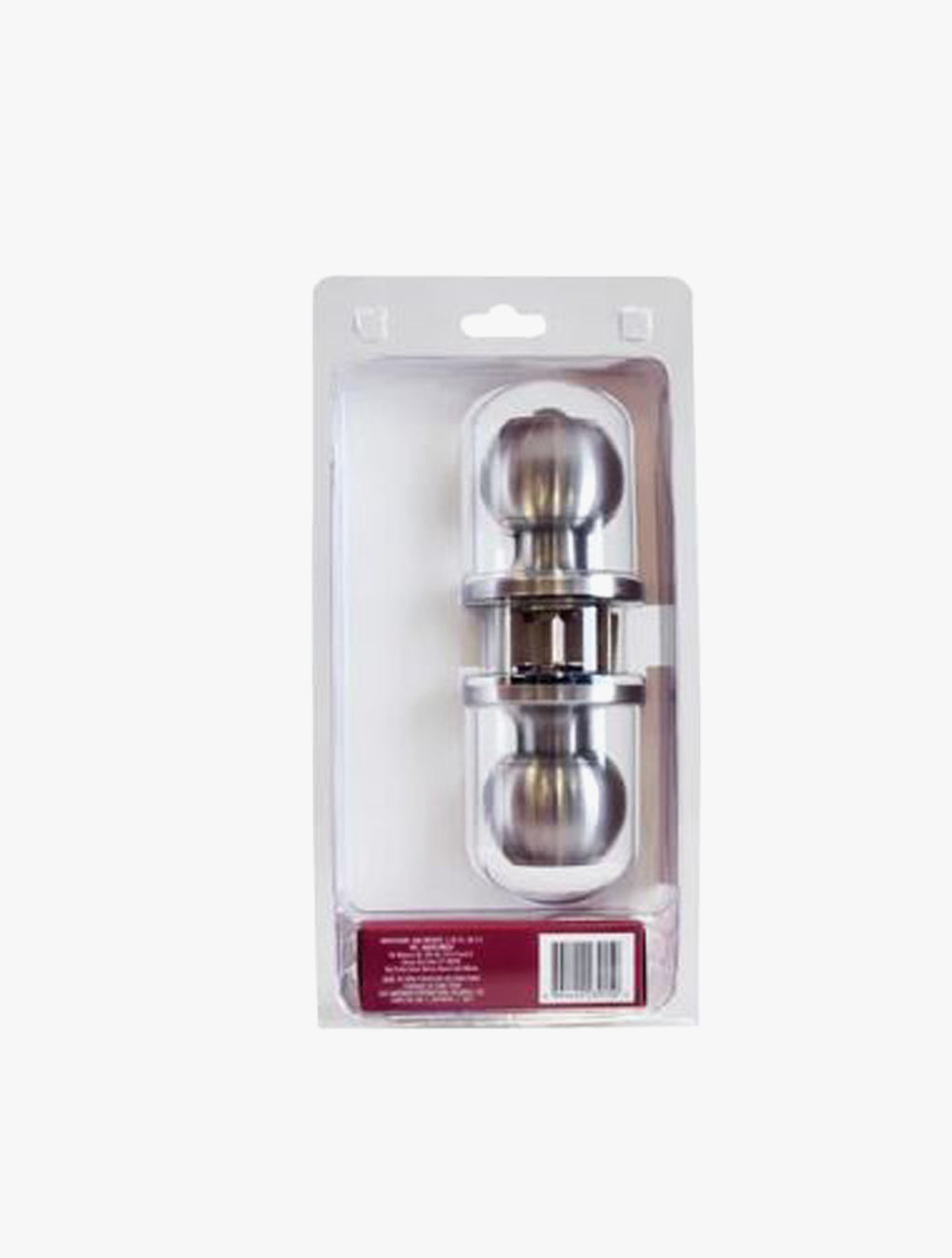

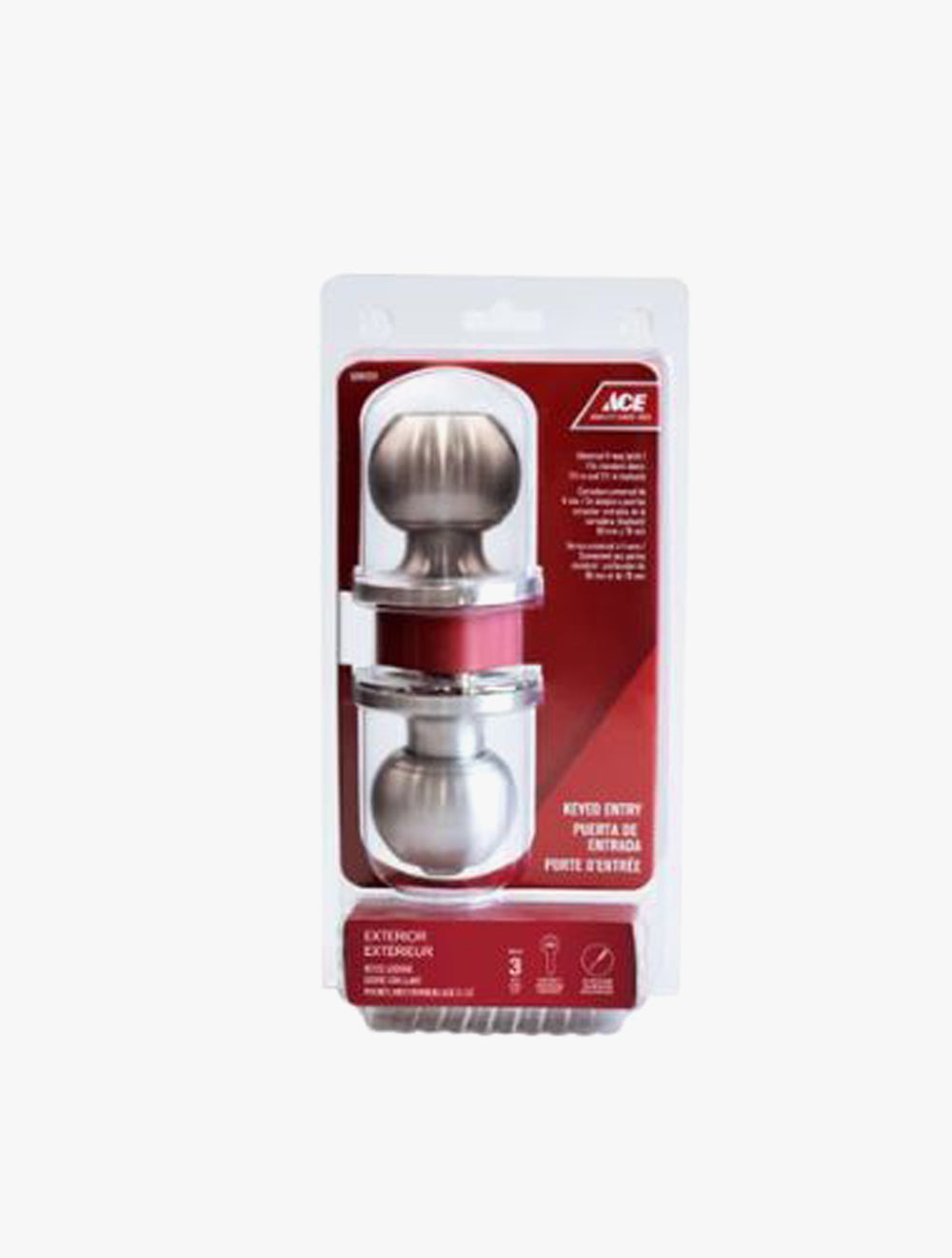

ACE DOORLOCK ENTRY BALL KNOB S/STEEL

Function: Designed to provide dependable keyed security with a clean, modern appearance, this tubular entry door lock is suited for exterior doors and interior spaces where controlled access is required.
The keyed entry function allows locking and unlocking from the exterior with a key, making it a practical choice for entry doors, offices, or rooms that need added security.
A ball‑style knob design offers familiar, comfortable operation for everyday use.
An adjustable latch (60–70 mm) helps the lock fit a range of common door backsets, supporting easier installation and replacement on standard doors.
The stainless steel finish delivers a sleek look that coordinates easily with other contemporary fixtures and hardware.
A 65 mm rosette provides a clean, finished appearance at the door surface while helping cover typical door preparation marks.
Material: Knob & Rosette: 201 stainless steel
Cylinder Housing: Zinc alloy
Cylinder Plug: Solid brass
Latch & Internal Components: Steel
Finish / Color: Stainless steel
Construction: Tubular entry lockset with ball‑style knobs and keyed cylinder
Usage Instruction: Remove existing door hardware if replacing a lockset.
Adjust the latch to fit the door backset (60 mm or 70 mm).
Insert the latch into the door edge and secure it.
Install the exterior ball knob with keyed cylinder and the interior knob through the latch mechanism.
Tighten mounting screws securely.
Test knob rotation and locking/unlocking using the included keys.
Power:
Product Completeness: 1 × Exterior ball knob with keyed cylinder (stainless steel finish)
1 × Interior ball knob (stainless steel finish)
1 × Adjustable latch (60–70 mm)
3 × Brass keys
Mounting screws and installation hardware (as included)
