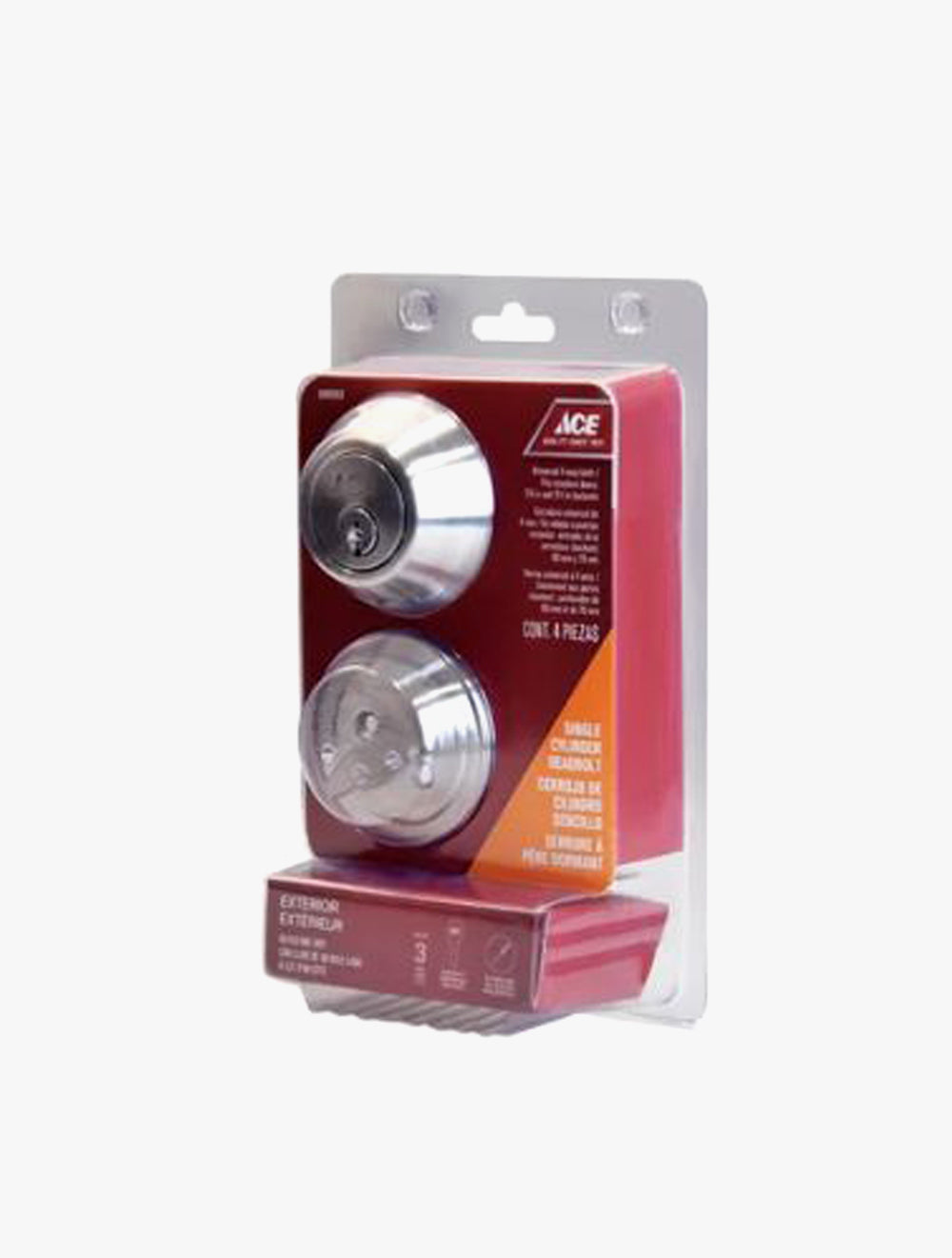

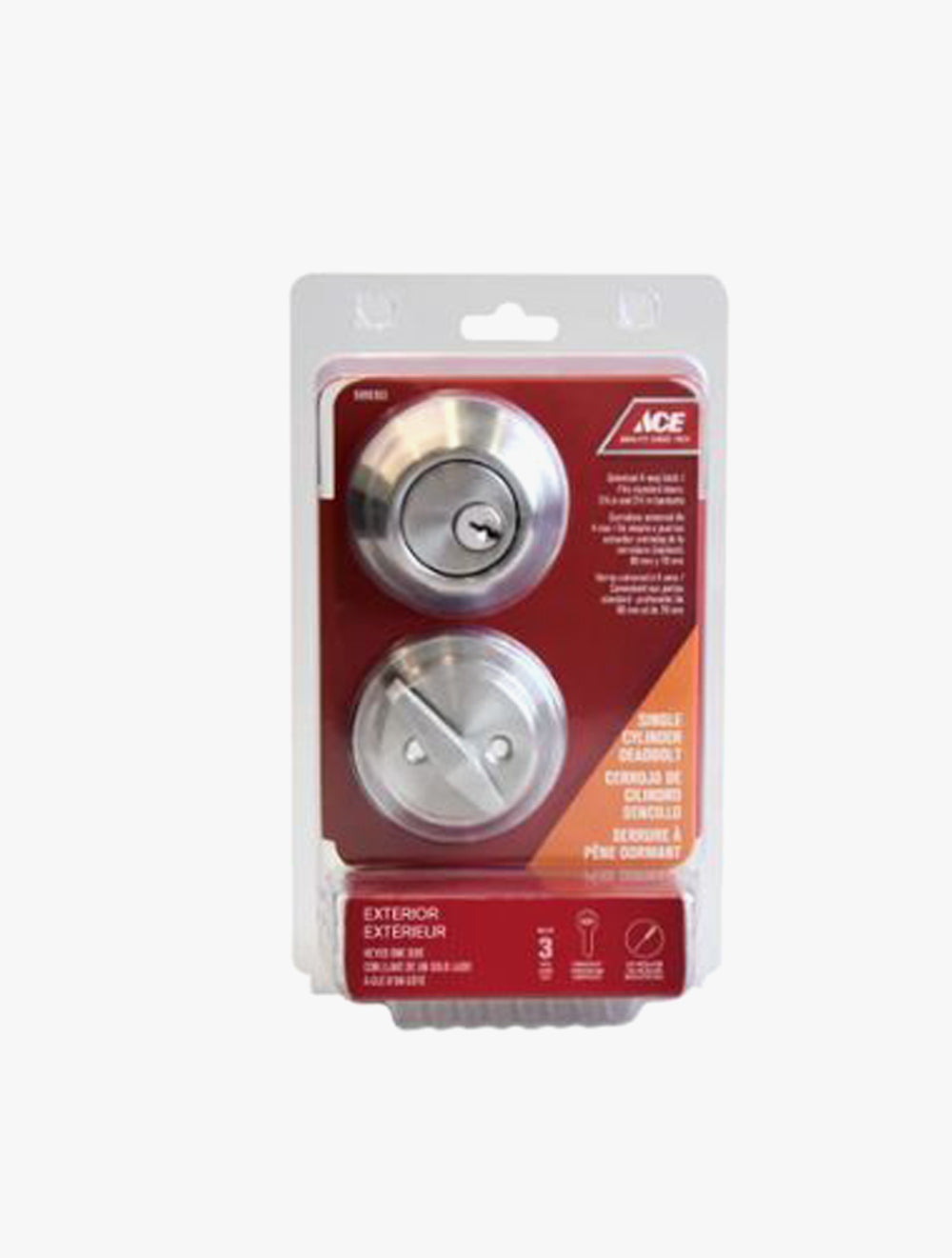

ACE DEADBOLT SINGLE CYLINDER S/STEEL

Function: Designed to provide dependable everyday security for exterior doors, this single cylinder deadbolt offers keyed protection with simple, familiar operation.
The single‑cylinder design uses a key on the exterior and a thumbturn on the interior, allowing quick locking and unlocking from inside while maintaining secure access control from outside.
An adjustable latch (60–70 mm) helps the deadbolt fit common door backsets, making installation easier for standard residential door preparations.
Material: Cylinder Housing: Zinc alloy
Cylinder Plug: Solid brass
Latch & Internal Components: Steel
Finish / Color: Stainless steel
Construction: Tubular single cylinder deadbolt with keyed exterior and interior thumbturn
Usage Instruction: Remove existing deadbolt hardware if replacing a lock.
Adjust the latch to match the door backset (60 mm or 70 mm).
Insert the latch into the door edge and secure it in place.
Install the exterior keyed cylinder and interior thumbturn assembly through the latch mechanism.
Tighten mounting screws securely.
Test locking and unlocking from both sides to confirm smooth operation.
Power:
Product Completeness: 1 × Exterior keyed deadbolt (stainless steel finish)
1 × Interior thumbturn assembly (stainless steel finish)
1 × Adjustable latch (60–70 mm)
3 × Brass keys
Mounting screws and installation hardware (as included)
